motogadget Analogue Tachometer chronoclassic 14
motogadget chronoclassic 14:

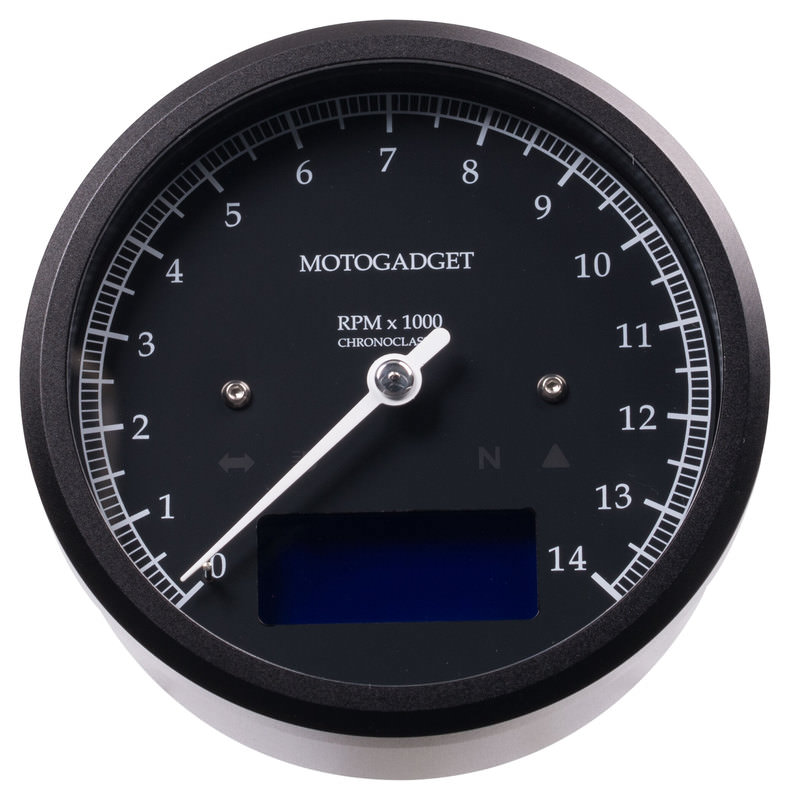

The Chronoclassic 14 from motogadget is an analogue tachometer with many additional digital features in a classic 80 mm round casing. Technically identical to the motoscope classic 14 tachometer, the Chronoclassic 14 has a distinctive black dial and white pointer. The design is deliberately reminiscent of old Smiths instruments.
Versions:
Black: Black housing/black outer ring
Polished: Black housing/polished outer ring
Dark Edition: Dark LC display (standard: Green LC display)
Functions:
- Tachometer (analogue display up to 14000 rpm)
- Speedometer (digital display)
- Trip counter
- Odometer (total distance)
- Trip time indicator
- Adjustable rpm threshold warning
- Electrical system voltage 9 V to 18 V
- Undervoltage warning (replaces charging indicator light)
- Air or water temperature
- Oil temperature
- Oil pressure
- Time measurement
- Current acceleration
- Average speed
- Max. speed
- Max. rpm
- Max. positive acceleration
- Max. negative acceleration
- Gear shift indicator (neutral, gears 1-6)
- Green indicator LED Neutral (N)
- Yellow indicator LED Turn signal left/right
- Blue indicator LED High beam
- Red warning LED Various warning functions
- Output for external gearshift indicator
Dimensions:
- Installation diameter: 80 mm
- Overall diameter (bezel): 85 mm
- Depth, not incl. cable gland: 34 mm
- Weight: approx. 230 g
- Attachment: 3 x M4 threaded bushes
Comprises:
- Instrument with approx. 55 cm connection cable
- Complete plug-in connector
- Fuse
- Speedometer sensor M5 with 150 cm connection cable
- 2 magnets
- Mini push button
- 3 x M4 bolts (stainless steel)
- Detailed installation and operating instructions
Manufacturer details: Motogadget
High Class Instruments & Accessories - MADE IN GERMANY
Anyone who is serious about customising cannot fail to appreciate the quality of motogadget products. In no time at all, the Berlin-based manufacturer has achieved virtually cult status with its high-class instruments. The reason is the exceptional functionality of motogadget products, but most importantly their extremely clean design, high-quality materials, top engineering and absolute reliability.
Info
The German "Allgemeine Betriebserlaubnis (ABE)" (general type approval) authorises the use of the relevant accessories on the vehicle models listed in the certificate booklet. The certificate booklet must be carried along when driving and must be presented on request in the event of a traffic control or the main inspection (HU).
Accessories with an ABE do not have to be registered in the vehicle documents. However, if you do not want to carry the certificate with you at all times, you can have it registered (at a charge) by the TÜV, for example.
If the accessories are to be used on a vehicle that is not listed in the ABE, an individual approval is necessary.
The regulations in other countries may differ. Before ordering a product, please make sure that it may be used in road traffic in your region, your country.
Info
QUALITY MADE IN GERMANY!
By purchasing this item you have chosen a premium-quality product with superior German workmanship. This internationally acknowledged mark of quality means that this product is the result of efficiently coordinated development and production processes, technological expertise, continuous quality controls.
